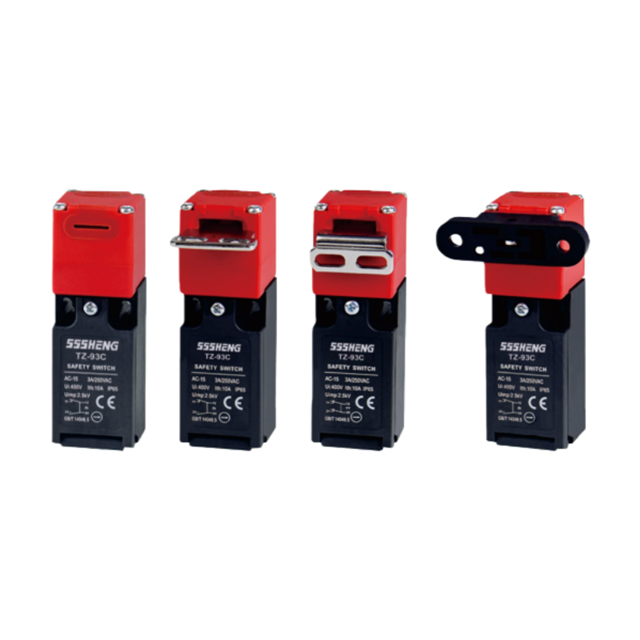

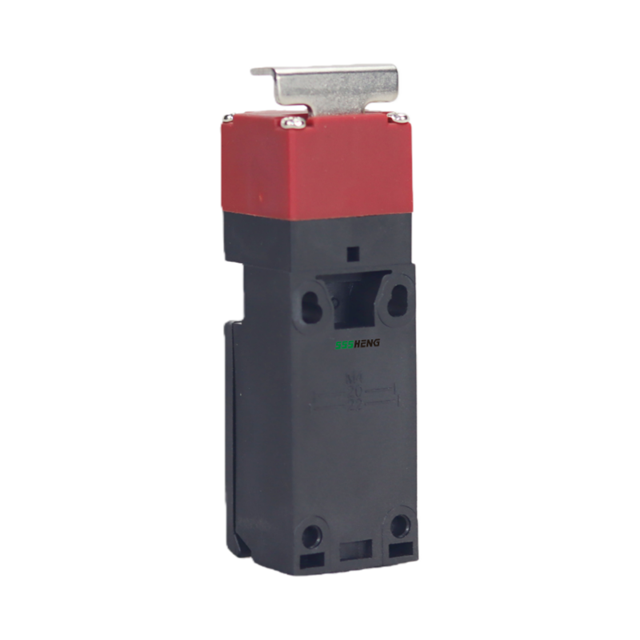

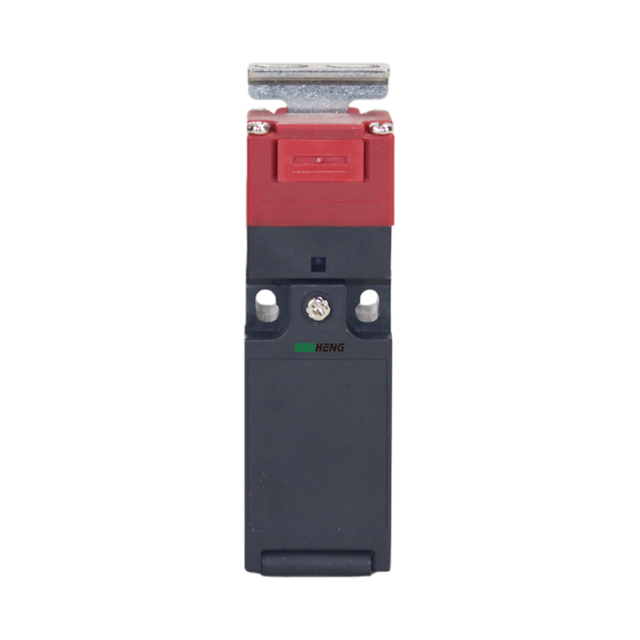

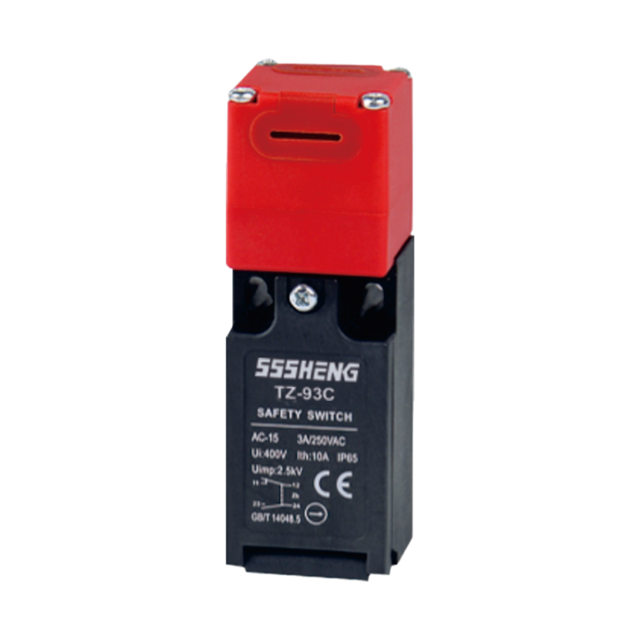

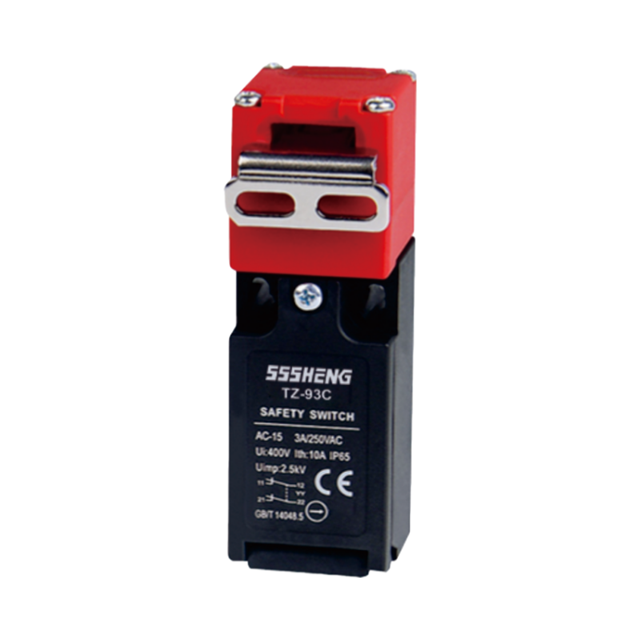

TZ-93CPM02 10A,IP65, Limit switch for safety door

Model Number Structure

1. Type: CZ-93 Safety switch.
2. Type of contact blocks fitted: B-2B(2NC),C-1A1B(1NC/1NO).
3. Conduit/connector size: PG-PG 13.5XP1.5,PM-M20×1.5.

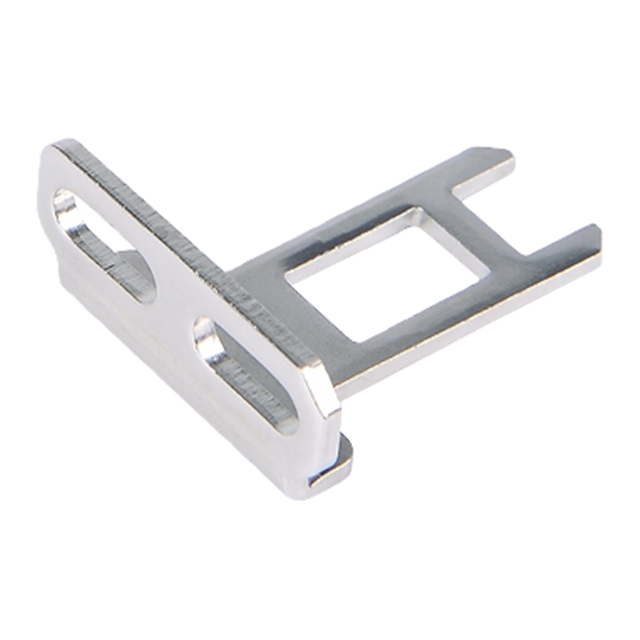

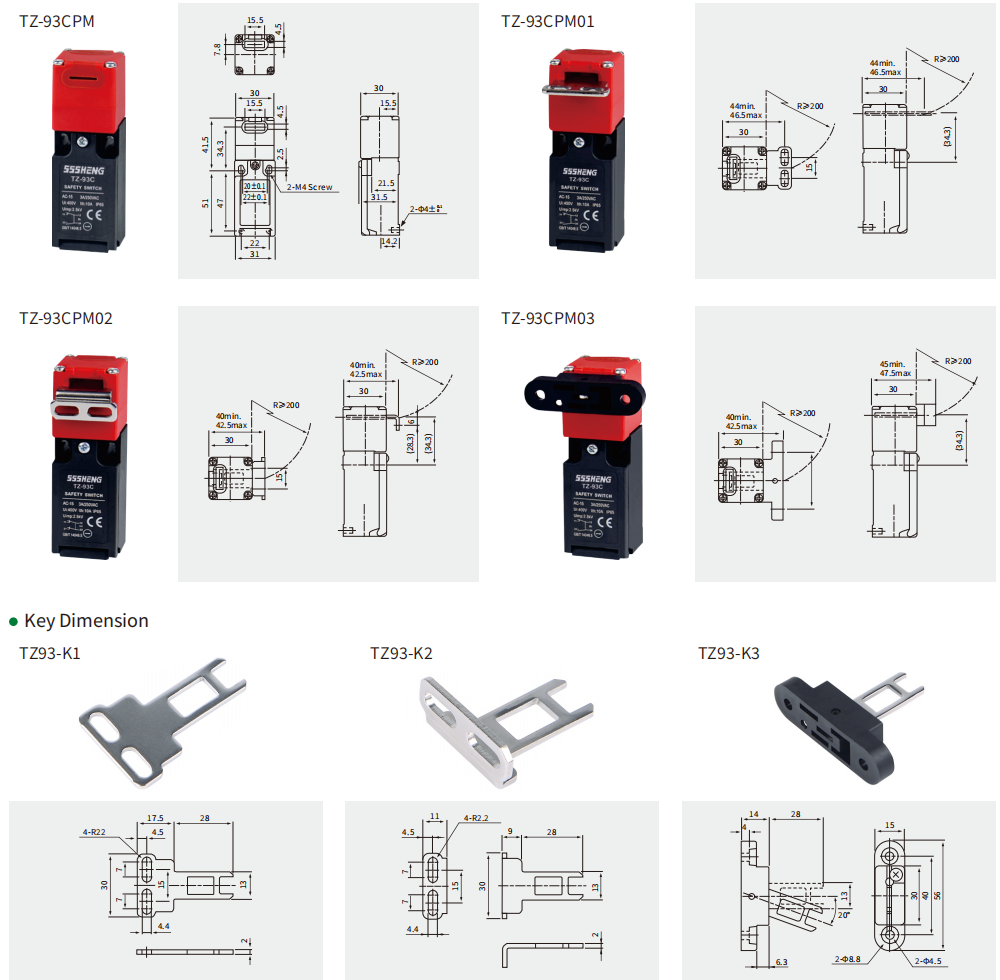

4. Actuating keys: None-None,01-Horizontal,02- 90° Vertical,03- Adjustable.
5. Note: The default size of conduit connector is M20×1.5.

Notes:

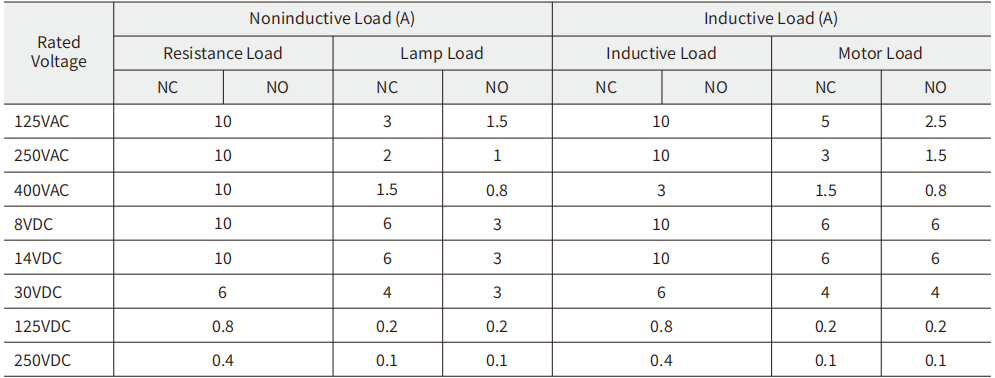

1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.

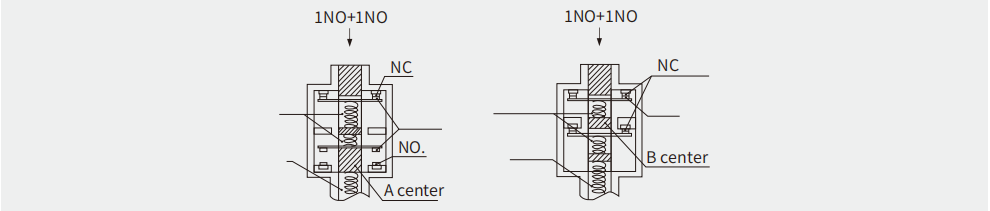

When the contact block get fire, press on the middle of the key structure, the NC strict leaving structure can push the contact block a way cut off the movement.
